The Microwave and RF Systems Lab is a workspace for many of the group’s advanced research projects. The lab is complete with equipment such as signal generators, spectrum analyzers, and power supplies, as well as computers containing necessary CAD tools such as CST Studio and Advanced Design System (ADS). Recent experiments conducted in this lab include advanced vital sign detection, gate analysis, indoor localization, and ground-penetrating radar measurements.
Microwave & RF Systems Laboratory is currently equipped with the following major instruments.
Network Analyzer
Agilent PNA Network Analyzer (10MHz-40GHz)-E8363B
Spectrum Analyzer

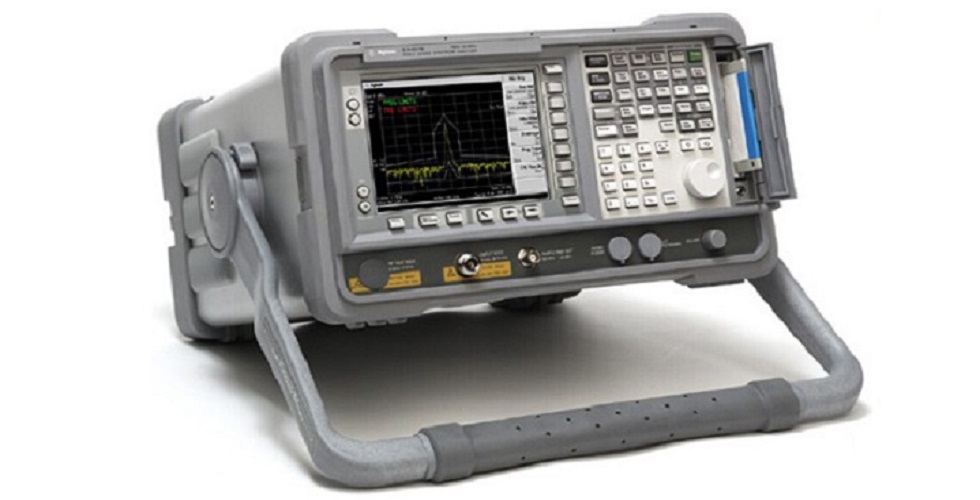

Agilent ESA-E Series Spectrum Analyzer (9kHz-26.5GHz)-E4407B
Digital Oscilloscope
Tektronix 8GHz Digital Phosphor Oscilloscope-DPO70804
Digital Oscilloscope
Tektronix Digital Sampling Oscilloscope (DC-70+GHz)-TDS8200
Signal Generator
Agilent 8360B Series Swept Signal Generator (2GHz-20GHz)-83622B
RF Signal Generator
Agilent ESG Series RF Generator (250kHz-3GHz)-E4421B
Oscilloscope

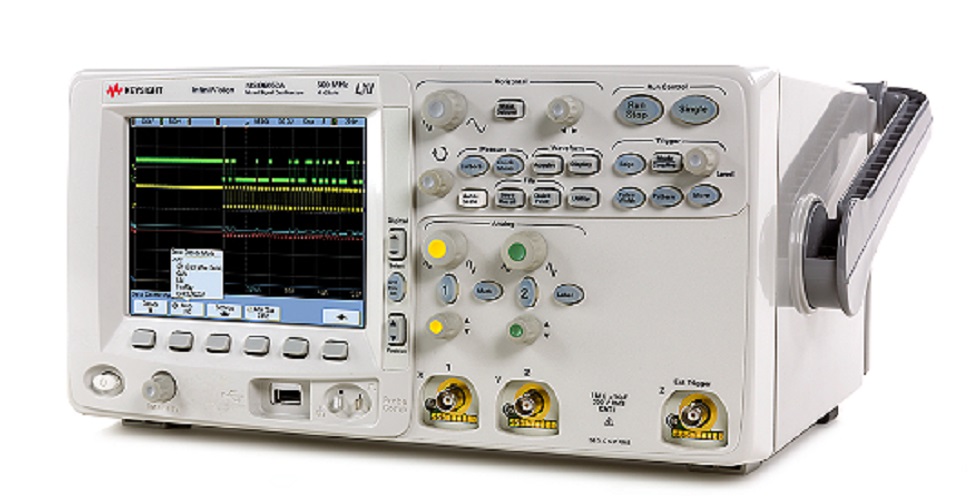

Agilent HP 2-Channel Oscilloscope-DSO6102A
Digital Oscilloscope
Tektronix Digital Oscilloscope-TBS1064
Power Supply

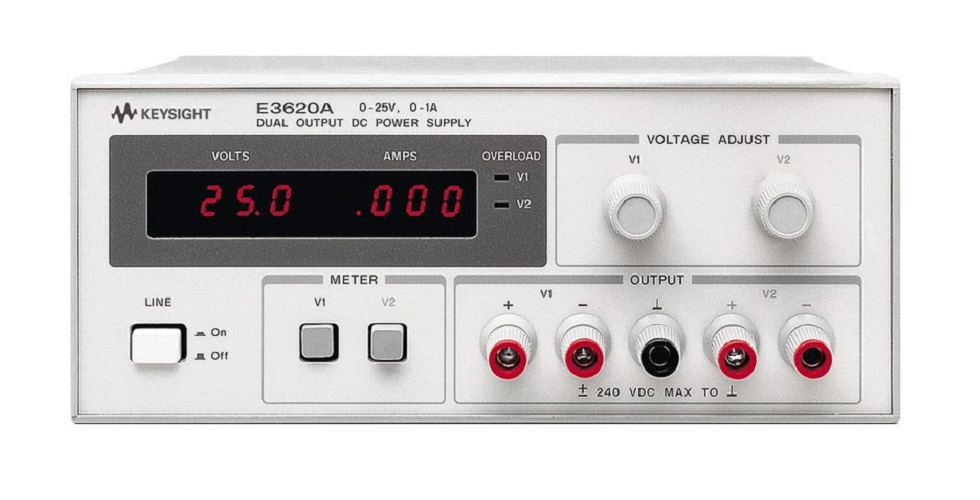

Keysight Dual Output DC Power Supply (50W)-E3620A
Power Supply

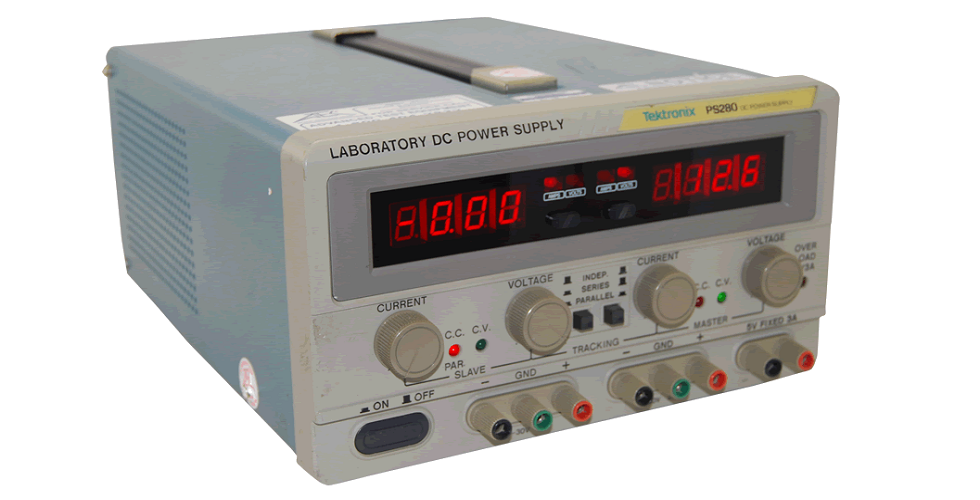

Tektronix Triple (One Fixed and Two Variable) Outputs DC Power Supply-PS280
Power Supply
Topward Dual Trace DC Power Supply-6306D
Power Supply
Leader Regulated Digital DC Power Supply-718-3D
UWB Radar

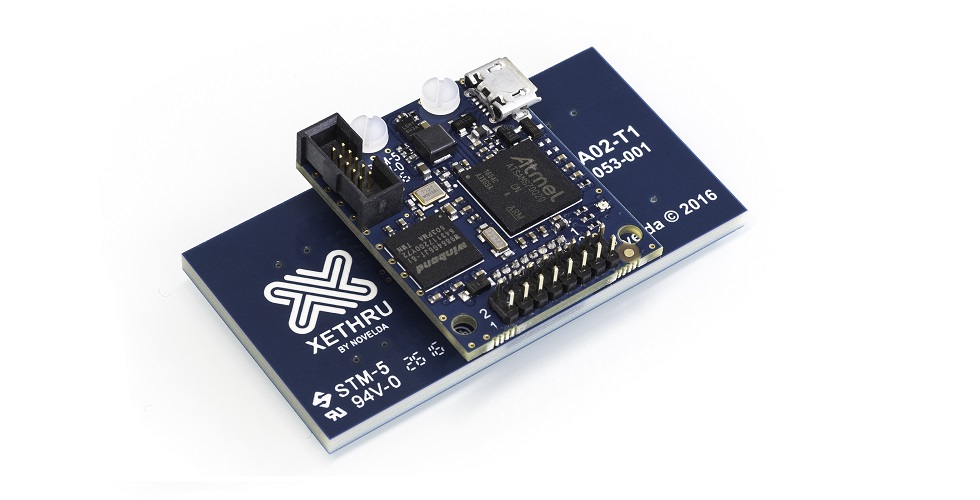

XeThru UWB Impulse Radar Chip-X4M300
FMCW Radar
V-MD3 Digital 3D Radar Transceiver
SDR
Software Defined Radio (SDR) Development Kits
Soldering Machine

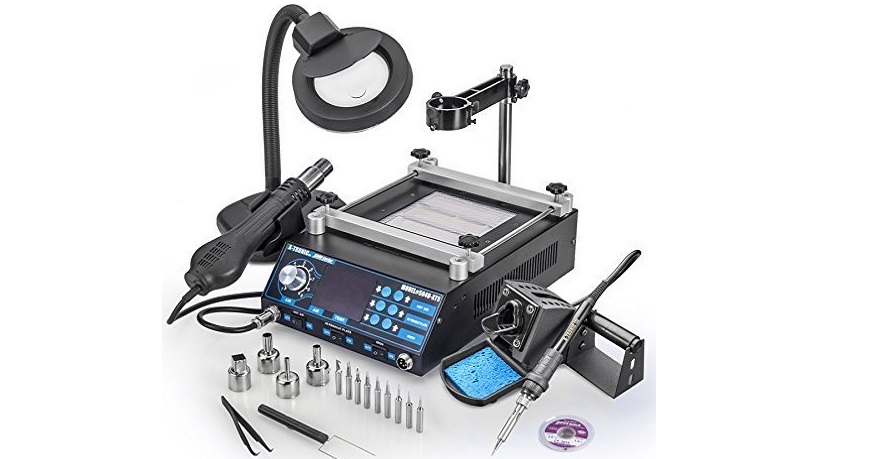

X-TRONIC 5000 Series Soldering Station
Actuator
Zaber Technologies Actuator, T-NA Series Linear Actuator
Fiber Optic Kit

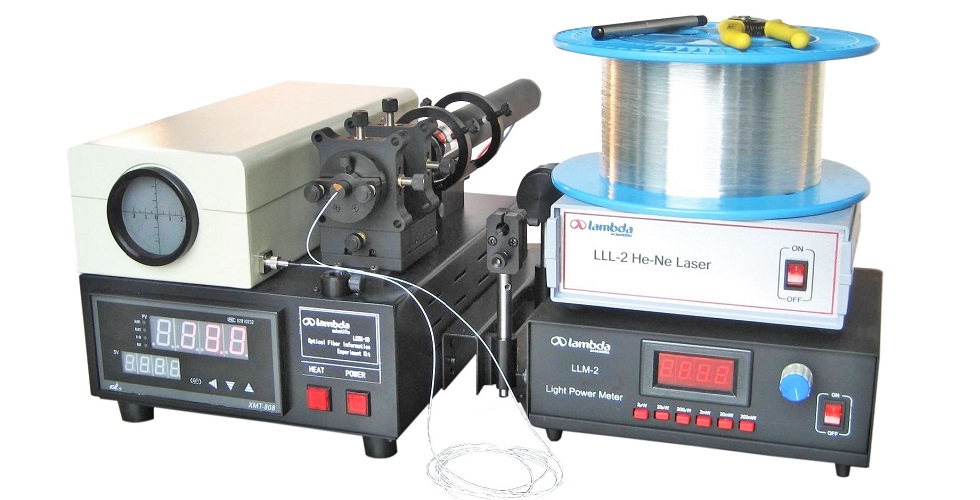

Lambda Fiber Communication Experiment Kit-LEOK-21
